CLICK-STYLE OXYGEN REGULATOR-3

The intake connector is a “bull nose” (with a G5/8 external thread).

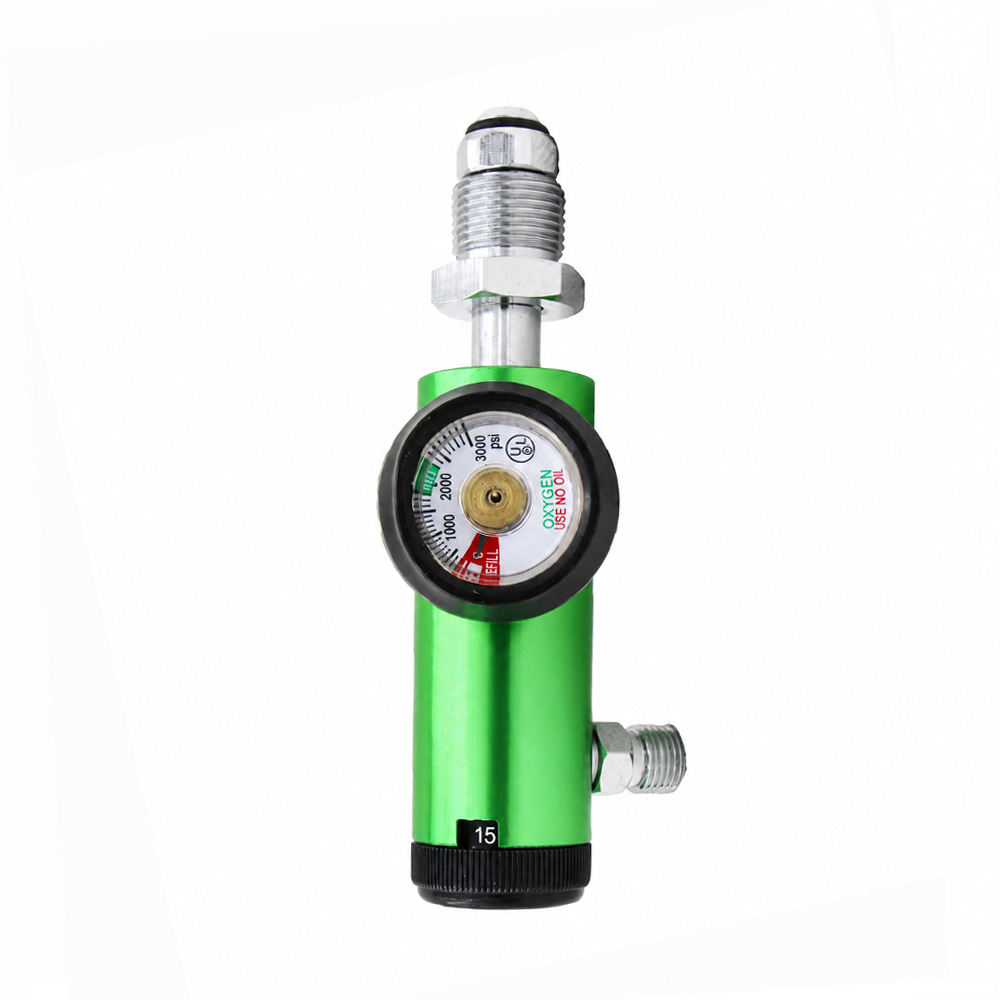

The exhaust connector barbs or DISS (as shown in the picture, it is a DISS connector)
The barbs are directly attached to the nasal oxygen tube.
DISS connector for humidification cup
Pressure gauge: 3000 psi or 4000 psi
Flow rates are: 0 – 1 lpm, 0 – 4 lpm, 0 – 8 lpm, 0 – 15 lpm, 0 – 25 lpm, etc.

·Aluminum body or brass chrome body with brass core
·3000 psi or 4000psi maximun inlet pressure
·1-1/2″diameter gauge
·Inlet connection complies to CGA standards
·Internal relief valve
·Alternative color(green,blue,yellow,red,silver)
·Piston type regulator
·Sintered bronze inlet filter for longer service
·Easy to read flow rate window·Selection of:0-2;0-4;0-8;0-15;0-25
